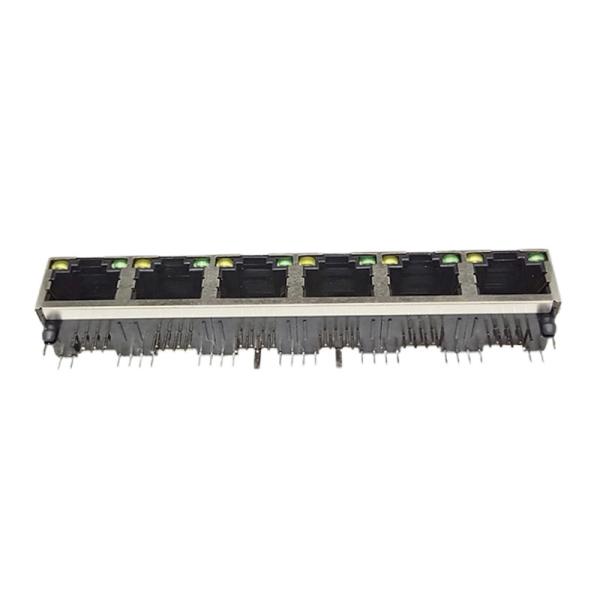

Name: PCB RJ45 Alternative Connector 1x6 RJ45 8P8C Modular Connector With Led
Brand: XTKCONN
Price: 1 USD

Brand Name : XTKCONN

Model Number : RJ45

Certification : CE,SGS,ROHS,ISO9001

Place of Origin : Guangdong,China

MOQ : 500pcs

Price : Negotiable price

Payment Terms : L/C, T/T,Payyal

Supply Ability : 1KK pcs

Delivery Time : 5-7 days

Packaging Details : inner package:in reel; Outer Package: reel in Carton

Application : PCB

Material : ABS/PBT/PA66/LCP

Durability : 800 mating cycles min

Voltage Rating : 125V

Mating/Unmating Force : 2.2KG.F MAX

LED Option : Yellow/Green LEDs

Contact Now

Alternative RJ45 PCB Connector 1x6 With Led 8P8C PCB Jack Connector

Specification

Electrical
1.Current Rating	1.5 amps
2.Voltage Rating	125vac
3.Insulation Resistance	500 MΩmin
4.Contact Resistance	30 MΩmax
5.Withstanding Voltage	AC 1000V RMS 50Hz or 60Hz 1 min
Mechanical
1.Retention Strength	7.7KG.F min between jack and plug
2.Durability	750 mating cycles min
Material
1.Housing	PBT(UL94V-0) PA66(UL94V-0) PA46(UL94V-0) LCP(UL94V-0)
2.Contact Wire	Diameter 0.45mm phosphor bronze gold plating over nickel 0.35mm thickness phosphor bronze alloy selective gold plating over nickel
3.Shield	0.20~0.25mm thickness brass with tin plated
4.Gold Plating	1u ,3u 6u 15u 30u 50u
LED Specification	Standard LED Color	LED Wavelength	Forward (V MAX)	Typical (V TYP)
	Green	560-580 nm	2.5V	2.1-2.2V
	Yellow	580-610 nm	2.5V	2.1-2.2V
Operating and Storage Temperature
Operating Temperature	-40℃ to 85℃
Storage Temperature	-40℃ to 85℃
APPLICATION
NETWORKING PRODUCTS: NIC, HUB, SWITCH, ROUTER, BRIDGE,WORK,
STATION: PC/SYSTEM, PRINTER,SERVER,NB,IACABLE MODEN,XDSL APPLICATION, SET-TOP-BOX.

PCB RJ45 Alternative Connector 1x6 RJ45 8P8C Modular Connector With Led

Applications

GPIB Expanders and GPIB Isolators

Optical Storage Media

Data Acquisition Products

Matrix Switching Systems

Design &Technical strength

We have many more than 20years experience in connector industry engineer can support your new

project.Design a new tooling time:30-45 workdays.
